How do I choose the right corrosion protection for complex geometries and welds?

For complex components, tight deadlines, or hard-to-reach geometries, the right coating strategy is crucial. Key factors include: appropriate pretreatment (e.g., blasting, cleaning)selection of the right coating systemconsistent film thicknesses, even at edges and seams GEHOLIT+WIEMER will be happy to advise you on selecting suitable coating materials.

For which sectors does GEHOLIT+WIEMER offer floor coatings?

GEHOLIT+WIEMER offers industrial floor coating systems for a variety of requirements, such as: static-dissipative and conductive floorscoatings resistant to chemicals and mechanical stressrenovation of existing industrial floors

QUALITY SHOWS ITS COLOURS SINCE 1889

Q: What does DB 703 mean, and which RAL color corresponds to it?

DB 703 is a commonly used iron mica color with a metallic finish. The name and formula originally come from Deutsche Bahn (DB), which developed this color for the preservation and design of steel structures (such as bridges, railings, or train platforms). There is no direct 1:1 equivalent in the RAL system, as DB colors are based on their own color standards. Depending on the application, however, similar RAL colors may be recommended, or project-specific color samples can be created.

Q: What are single-shift systems used for in steel building construction?

Single-coat systems provide reliable corrosion protection in a single application. This reduces coating time, material consumption, and application costs. Modern single-coat systems offer fast drying times, high film thicknesses, and protection up to Corrosivity Category C3-High. In addition, many systems are low in VOCs and therefore more environmentally friendly.

Q: What is a corrosivity category?

Each corrosivity category describes the extent to which steel is at risk of corrosion due to environmental factors. According to DIN EN ISO 12944, it is classified into categories C1 through C5—ranging from very low to very high corrosion exposure. This classification helps in selecting the appropriate corrosion protection system for the specific environment. For example, heated indoor spaces are usually classified as C1 or C2, while industrial facilities or coastal areas are often assigned to categories C4 or C5. GEHOLIT+WIEMER offers corrosion protection products for all corrosivity categories.

Q: What sets all-weather technology apart in corrosion protection, and when is it used?

All-weather technology in corrosion protection enables the reliable application of coatings even under challenging weather conditions, such as low temperatures down to -5° Celsius, high humidity, or light rain. Unlike conventional corrosion protection products, all-weather coatings are specially formulated to adhere optimally and dry quickly even under less-than-ideal environmental conditions. This technology is primarily used in steel and plant construction, for outdoor maintenance work, and in bridge and infrastructure construction, where work interruptions caused by changeable weather must be avoided. GEHOLIT+WIEMER’s all-weather products thus help to implement projects more efficiently, reduce downtime, and ensure long-lasting, effective corrosion protection.

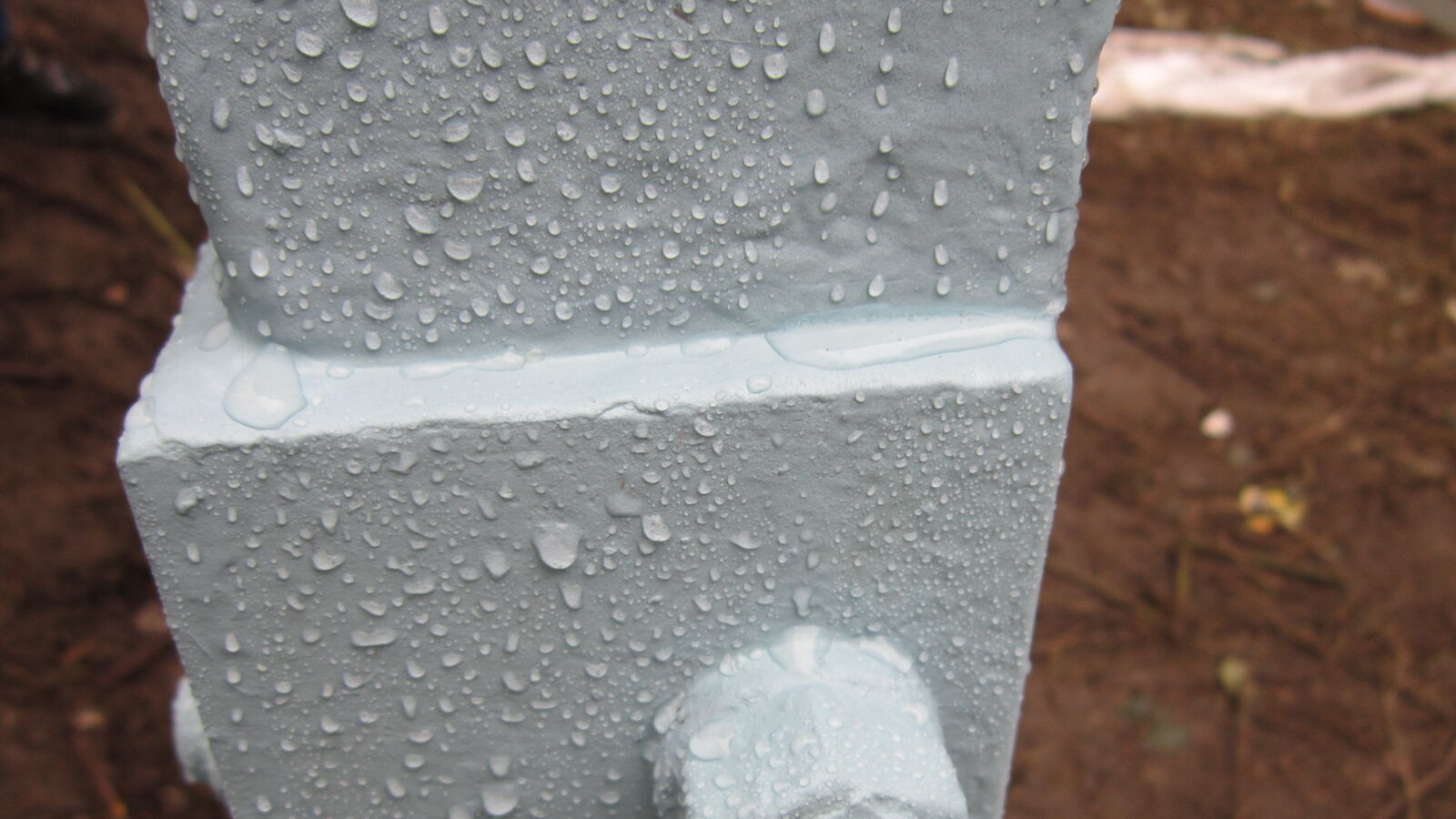

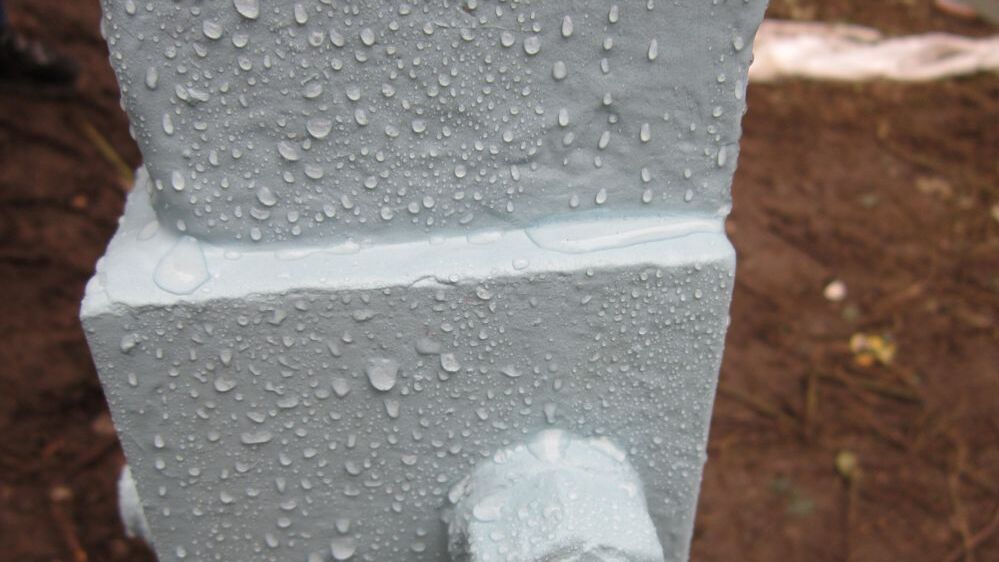

ALL-WEATHER COATING

The All-weather products can be used in extreme climatic conditions. The 1K high solid products can be processed at air, ambient and object temperatures of -5 ° C to 40 ° C. They can be applied directly to damp steel surfaces, old coatings and even residual rust. External test certificates for C3-Hoch to C5-Hoch testify to the high quality of the materials.

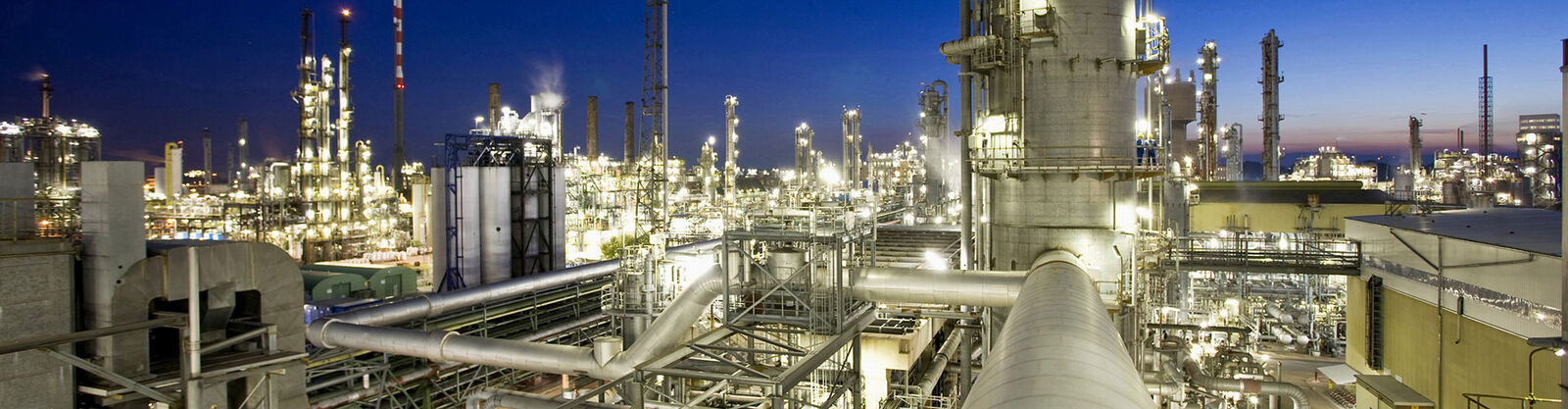

Typical objects are chemical plants such as refineries and tank farms, transformer stations, downpipes in pumped hydropower plants, overhead line masts, pipe bridges and tunnels.

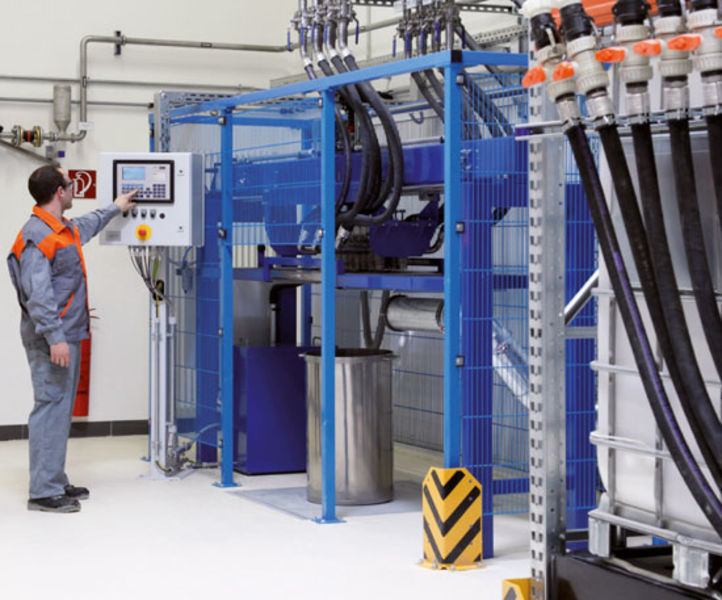

Gehofix paint mixing system

The GEHOFIX paint mixing system is a fully automatic paint mixing machine in which all RAL colour shades can be produced in very small quantities from three base coats in just three minutes by adding pigment pastes. Short-term availability and the reduction of stock levels mean that the painting process can be optimised and costs can be reduced.

GEHOLIT+WIEMER - part of the KABE Swiss Group

Do you already know the KABE Swiss Group? We present it to you in our image video.

The KABE Swiss Group has its headquarters in Gossau and is a group of companies with 10 internationally active companies, including GEHOLIT+WIEMER.

Join us on a journey and discover our diverse world of KABE colours.

EXCELLENCE ON SITE

One of the main factors behind the success of GEHOLIT+WIEMER is our long-term relations with our customers, which are based on trust.

We offer investors, planners, engineers, steel workers and coaters fast and effective advice from our experienced field staff and applications engineers, as well as specialists in the research laboratory.

Our three sites in Germany, each with the appropriate logistical facilities, ensure that deliveries are made on time. In Europe, we have subsidiaries in France (GEHOLIT S.a.r.l.) and Poland (GEHOLIT POLSKA Sp. z o.o.).

And in other European countries, GEHOLIT+WIEMER partners are there to support our customers. All of these have access to all of our company's technical expertise. This is very valuable when it comes to handling large projects involving several countries.

sales areas

Anticorrosive coatings by industry

Industrial coatings by industry

Frequently Asked Questions About Our Products:

The VOC (Volatile Organic Compounds) content describes the proportion of volatile organic compounds in paints and coatings. A low VOC value is important for environmental and health protection and plays a central role in regulatory requirements, such as those under the EU VOC Directive. GEHOLIT+WIEMER relies on coating systems with practical, compliant VOC values—tailored to the application and substrate.

Iron mica (iron oxide with a platelet-like structure) is used as a pigment in high-quality anti-corrosion coatings. Its flake-like arrangement significantly enhances the barrier effect against moisture and corrosive substances. Iron mica coatings are particularly suitable for steel structures, bridges, industrial facilities, and demanding environments.

The European Union’s 1994 ATEX guidelines (Explosion Protection Directive) address equipment and protective systems in potentially explosive atmospheres.
To obtain CE marking approval for equipment and machinery intended for use in potentially explosive atmospheres, the following limit values for conductive and dissipative corrosion protection products must be met in accordance with DIN EN 60079-0 and the “Technical Rules for Operational Safety” (TRBS) 2153:

A substance or material is considered conductive if its surface resistance (RO) is < 104 â„¦
A substance or material is considered dissipative if its surface resistance (RO) is < 109 â„¦

GEHOLIT+WIEMER’s coating systems meet both the high requirements for dissipative properties and for corrosion protection.

For complex components, tight deadlines, or hard-to-reach geometries, the right coating strategy is crucial. Key factors include:

appropriate pretreatment (e.g., blasting, cleaning)
selection of the right coating system
consistent film thicknesses, even at edges and seams

GEHOLIT+WIEMER will be happy to advise you on selecting suitable coating materials.

DB 703 is a commonly used iron mica color with a metallic finish. The name and formula originally come from Deutsche Bahn (DB), which developed this color for the preservation and design of steel structures (such as bridges, railings, or train platforms). There is no direct 1:1 equivalent in the RAL system, as DB colors are based on their own color standards. Depending on the application, however, similar RAL colors may be recommended, or project-specific color samples can be created.

Single-coat systems provide reliable corrosion protection in a single application. This reduces coating time, material consumption, and application costs. Modern single-coat systems offer fast drying times, high film thicknesses, and protection up to Corrosivity Category C3-High. In addition, many systems are low in VOCs and therefore more environmentally friendly.

Each corrosivity category describes the extent to which steel is at risk of corrosion due to environmental factors. According to DIN EN ISO 12944, it is classified into categories C1 through C5—ranging from very low to very high corrosion exposure. This classification helps in selecting the appropriate corrosion protection system for the specific environment. For example, heated indoor spaces are usually classified as C1 or C2, while industrial facilities or coastal areas are often assigned to categories C4 or C5.

GEHOLIT+WIEMER offers corrosion protection products for all corrosivity categories.

All-weather technology in corrosion protection enables the reliable application of coatings even under challenging weather conditions, such as low temperatures down to -5° Celsius, high humidity, or light rain. Unlike conventional corrosion protection products, all-weather coatings are specially formulated to adhere optimally and dry quickly even under less-than-ideal environmental conditions.

This technology is primarily used in steel and plant construction, for outdoor maintenance work, and in bridge and infrastructure construction, where work interruptions caused by changeable weather must be avoided. GEHOLIT+WIEMER’s all-weather products thus help to implement projects more efficiently, reduce downtime, and ensure long-lasting, effective corrosion protection.

GEHOLIT+WIEMER offers industrial floor coating systems for a variety of requirements, such as:

static-dissipative and conductive floors
coatings resistant to chemicals and mechanical stress
renovation of existing industrial floors
